Perpetual motion machines, turning lead into gold and capturing moonbeams in a jar are just some of the fanciful notions that have attracted human attention over the eons.

The last generation have been obsessed in their attempts to run whole economies on the weather. For those that launched all out efforts to run on sunshine and breezes, the results have been an unmitigated disaster (think notionally wind powered South Australia, now an international laughing stock).

As policymakers seek to quietly retreat from the brink, there are always a few members of the pack who think they can still trade their way out of trouble by building enormous (non-existent) batteries or those who seek quite literally to turn the tide.

Whether its sunshine, wind, waves or tides the ideal is always outstripped by the real – a bit like alchemy, really. Here is a sharp little analysis from Euan Mearns, busting another favoured green energy myth, that mixing it up solves the insoluble intermittency issue.

Green Mythology: adding different types of renewables smooths output
Energy Matters
Euan Mearns
30 January 2017

A favourite assertion of renewables enthusiasts is that intermittent supply can be smoothed by simply adding different types of renewable resource. How often have you heard “If it’s not windy then we can use tidal instead”. I present a simple renewable supply model for the UK that has 20 GW of tidal, 13.6 GW of wind and 8.8 GW of solar for a total of 42.5 GW installed capacity. When everything is on this outputs a maximum of 22.2 GW of power (52.2% load). When everything is off that falls to 0.9 GW (2.1% load). Those contemplating engineering the UK grid along these lines must surely be mad.

The Renewable Energy (RE) Model
I spent a short while reviewing the charts in UK Grid Graphed and selected April 2016 as the base for the model, not because it was representative but because it had a nice pattern of windy spells separated by lulls (Figure 1).

This extreme variance in wind is compensated by solar being mid-range in the Spring. At the end of 2015, the UK had 13.6 GW of installed wind and 8.9 GW of installed solar. Come April 2016 that will have increased but not by much.

smooth1

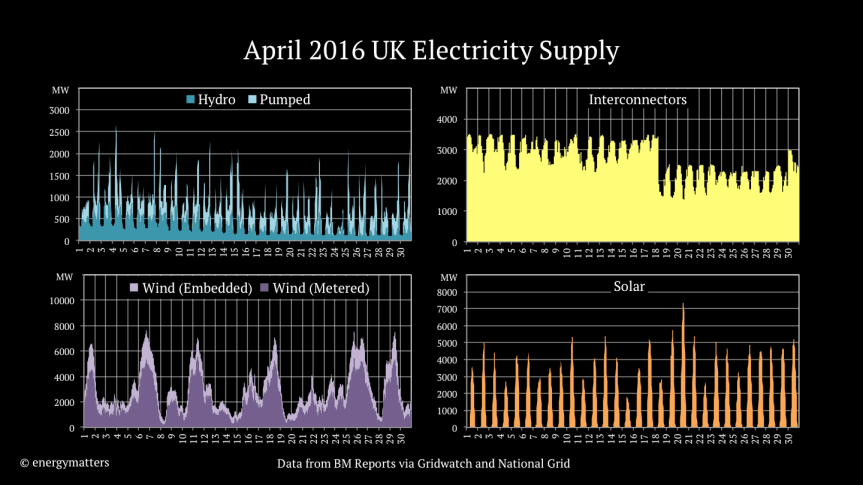

Figure 1 UK generation for April 2016 showing wind and solar, data from Gridwatch, chart from UK Grid Graphed

Tide generation data does not exist for the UK and so I somewhat laboriously created a numerical replica of the 1*DoEn model of Borrows et al (2008): Tapping the Tidal Power Potential of the Eastern Irish Sea that was discussed in my post on tides last week week: Green Mythology: Tidal Base-load Power in the UK (Figure 2).

smooth-2

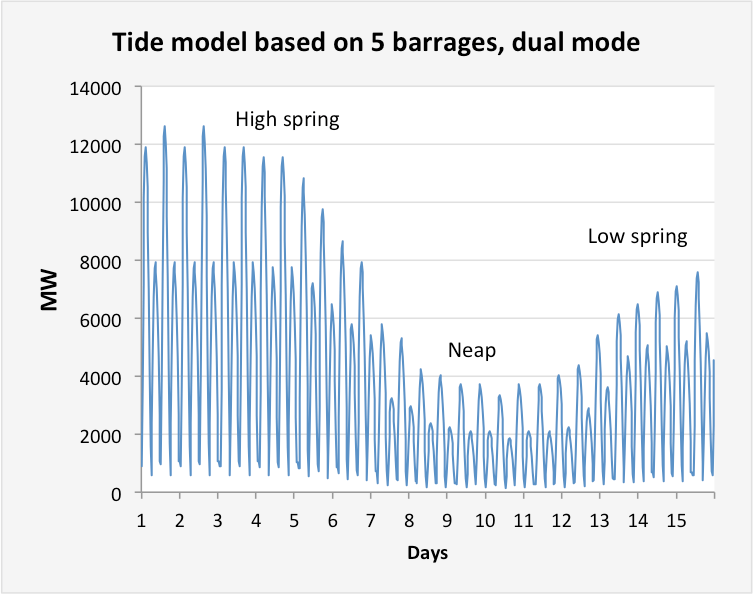

Figure 2 A model of tidal generation from 5 barrages in SW England based on Borrows et al 2008. The Borrows 1*DoEn model has 20 GW installed capacity but has maximum output of 12 GW and produces much less for most of the time.

The 1*DoEn model represents tidal barrages on the Severn, Dee, Mersey and Solway Estuaries plus Morecambe Bay, the latter all located in the E Irish Sea. Combined these have 20 GW of installed tidal capacity. I chose the dual mode model since this is how Tidal Lagoon plc propose to operate their tidal lagoons. This gives a grand total 42.5 GW installed RE capacity.

smooth-3

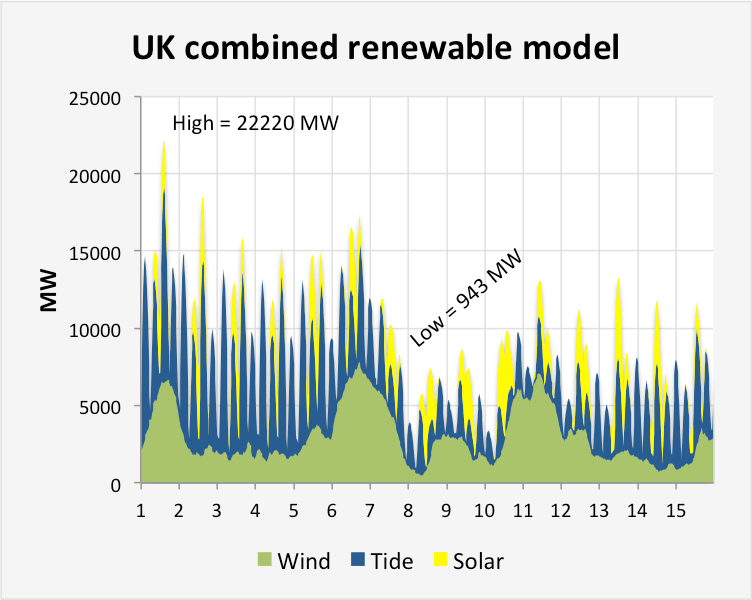

Figure 3 Stacking the real wind and solar data for the first two weeks of 2015 along with the model data for the Borrows 1*DoEn tide generation provides this picture of renewable output.

Stacking solar on tide on wind provides the picture shown in Figure 3. Adding dual mode tidal to the mix is catastrophic for stability of combined output.

On the first day we get a neap spring tide sitting on top of a wind spike during the day when the sun is up and this combines to produce 22.2 GW.

On the 8th day we get the trough in tidal production of a neap tide coinciding with a lull in the wind when The Sun has set for a total of 0.9 GW. That is an uncontrollable dynamic range factor of 25.

So is the assertion that combining different sorts of renewables smooths output true or false? It is clearly yet another Green Myth that simply refuses to die.

Ramp Rates.
We can take the analysis one stage further and examine what the CCGTs, hydro and pumped storage has to do in order to balance load. Figure 4 shows UK demand for the first two weeks of April and Figure 5 shows this demand profile minus the renewable stack shown in Figure 3. This is what the other dispatchable resources are left to follow and to balance.

smooth-4

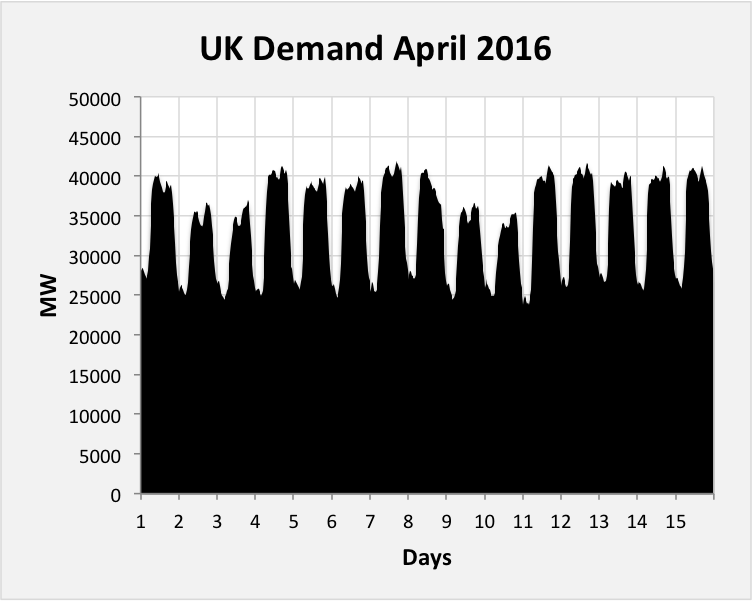

Figure 4 UK electricity demand for the first two weeks of April 2016.

smooth-5

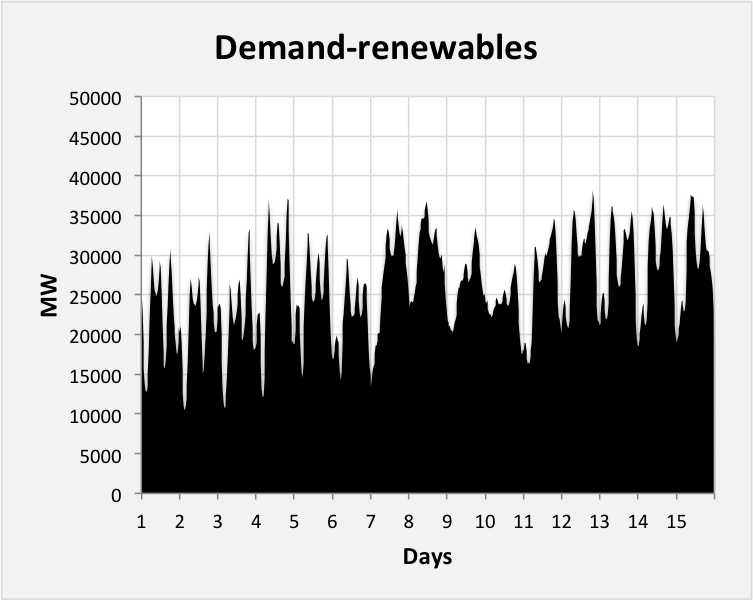

Figure 5 UK electricity demand curve (Figure 4) minus the renewable model stack (Figure 3) leaves this rather ragged looking residual that hard pressed CCGTs, hydro and pumped storage would have to follow.

We can make three key observations. 1) The daily demand cycle is still clear to see and has not been obliterated by the intrusion of 42.5 GW of RE, but 2) the residual that needs to be balanced has become significantly more ragged and variable and 3) 42.5 GW of RE has only reduced peak residual demand by about 5 GW (from 45,000 MW (Figure 4) to 40,000 MW (Figure 5)). This latter point is key; 42.5 GW of infrastructure everywhere, all of it working at low load, is doing very little useful work on our behalf.

I am defining ramp rate as the change in electrical demand from one hour to the next. The ramp rate profile for UK demand is shown in Figure 6. The regular spikes represent the sides of the demand peaks where supply must be ramped up in the morning and down in the evening. We see that the UK dispatchable fleet of generators must regularly ramp at +8GW/hr in the morning and -4GW/hr in the evening.

smooth-6

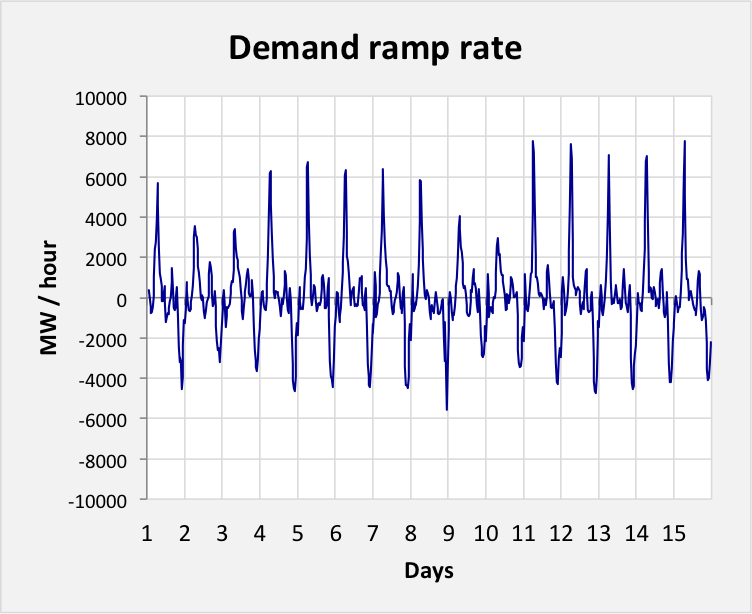

Figure 6 The ramp rates for UK electricity demand as shown in Figure 4.

smooth-7

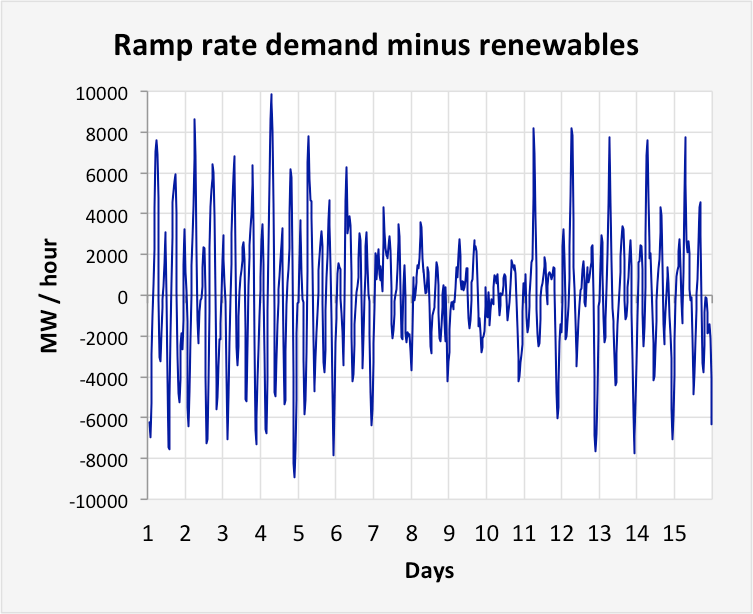

Figure 7 Ramp rate for electricity demand less renewable residual as shown in Figure 5. Tidal dual mode generation increases the frequency of ramping rather than the amplitude.

Performing the same exercise on the demand minus renewables profile (Figure 5) produces the picture shown in Figure 7. The key observations: 1) the amplitude of the positive ramp rate is not materially changed although there is one spike of almost 10 GW / hour; 2) the negative ramp rate is materially changed with an increase from -4 GW/hr to a range of -6 to -8 GW/hr and 3) during the period of high springs in the first 7 days (Figure 2) we see the need to ramp from extremes of 3 to 8 GW/hr four times per day.

Concluding Comments
As discussed in my earlier post, the high frequency ramping that tidal demands can only be sensibly balanced using bespoke pumped hydro storage. The vendors of tidal energy should be required to provide this load-balancing service.

Two Hinkleys with combined capacity of 6.4 GW will do a far superior job to the 42.5 GW of renewable infrastructure everywhere.
