Renewable Energy Meltdown: Heatwave Leaves Wind ‘Powered’ South Australians Sweltering In the Dark

If you’re relying on the weather for your power, prepare yourself to live without it: South Australians know the drill very well.

In yesterday’s post, we focused on 25 January the day when Victorian wind power output struggled to produce 20% of its nameplate capacity, and 200,000 households struggled to survive without air-conditioning, or any of those other creature comforts one expects in a (notionally) first world country.

In this post, we’ll wind the clock back 24 hours and take a look at the chaos that reigned in both Victoria and South Australia.

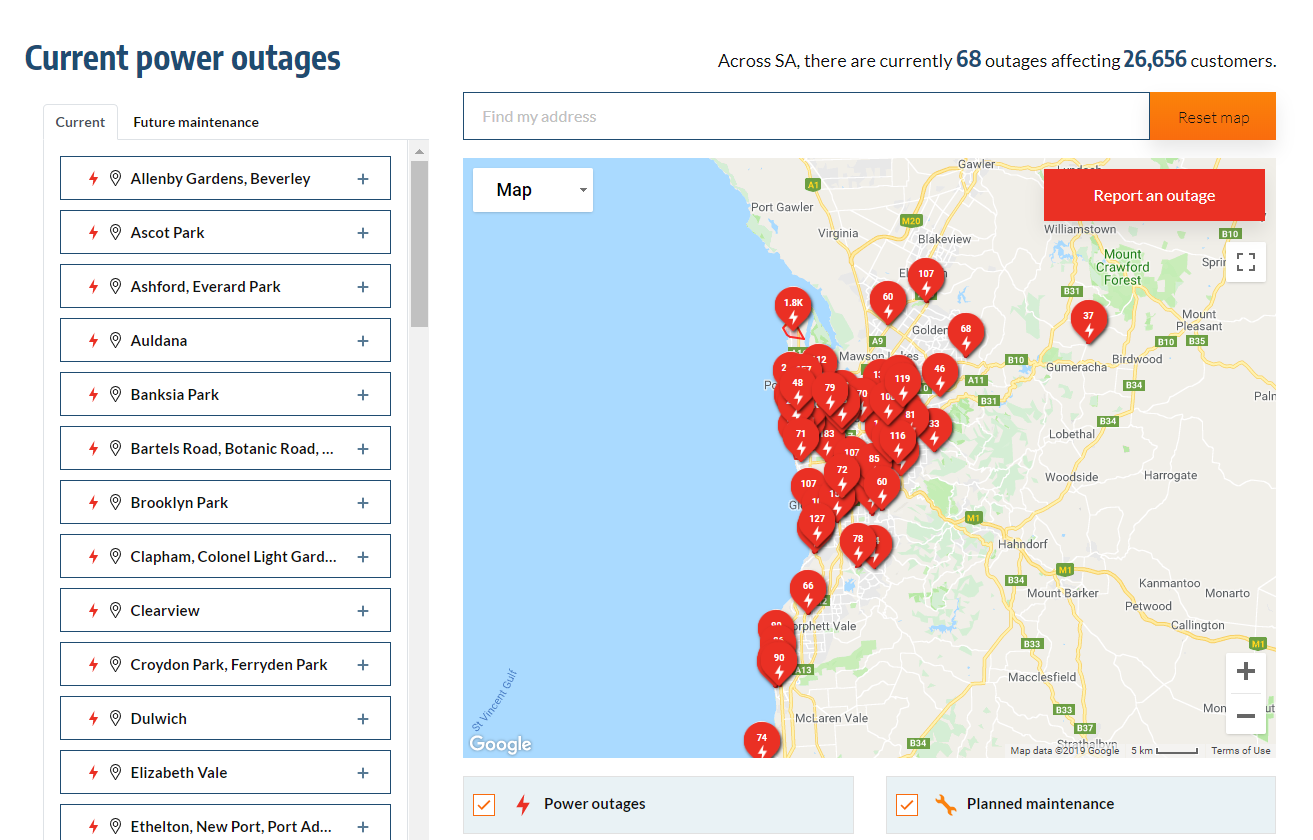

The graphic above is a snapshot of the debacle in South Australia, where more than 26,000 households were left powerless on a very hot summer’s evening (the figure increased after that).

Be warned that the story below is a mixture of hysteria and RE propaganda. South Australians and Victorians get to deal with the hysteria, STT will unpack some of the propaganda below.

AEMO taps emergency energy powers after a unit at AGL’s Liddell coal-fired power plant fails
The Australian
Perry Williams and Rachel Baxendale
24 January 2019

South Australia has been hit by a major electricity blackout with more than 20,000 households to endure a night without power after a severe heatwave buckled local poles and wires networks and stretched the state’s grid to breaking point.

Power was knocked out from 90 ‘poles and wires’ transformers on local streets after electric fuses shut down due to record temperatures with more than 21,000 homes losing access to electricity, SA Power Networks confirmed.

“There are a large number of people without power throughout the night,” SA Power Networks spokesman Paul Roberts told The Australian. “These are record temperatures and power equipment like human beings is very vulnerable at times like these.”

The fresh power crisis comes just over two years after the entire state was plunged into darkness when powerful storms knocked out 22 power pylons which triggered a shutdown in the electricity network.

Searing heat caused chaos across Australia’s fragile power market today as demand outstripped supply, forcing the market operator to order Victoria’s largest electricity user to cut its power use tonight to help balance the power system.

Adelaide hit a new record of 46.6 degrees on Thursday afternoon while Melbourne topped 40 degrees, ratcheting up demand on the power system. The South Australian towns of Whyalla, Wudinna and Tarcoola were all forecast to reach 48C today, with towns in Victoria’s northwest headed for 46C tomorrow.

The state’s Portland aluminium smelter run by Alcoa was told to lower its power use between 7.10pm and 8.50pm east coast time to help secure the power system after earlier agreeing to free up 400 megawatts of supply to dodge enforced electricity cuts.

Earlier, AEMO chief executive Audrey Zibelman said the market operator had called on 400 megawatts of additional energy reserves involving contributions from both commercial and residential customers who had been contracted by AEMO as a hot weather contingency.

A combination of extreme weather and faulty power plants saw the market operator ask customers in the two states to cut their power usage in a process called ‘load shedding’ to help ease pressure on the grid and keep the lights on.

Consumers were also asked to avoid using dishwashers, washing machines and pool pumps during peak times and lower their blinds before going to work to cool houses and lower demand.

Spot power prices in Victoria soared to $14444 a megawatt hour on Thursday night with South Australia spot trading even higher at the maximum of $14500 a MWh, AEMO data shows, compared with average prices of about $100 a MWh.

Prices in both states are forecast to remain at the maximum of $14500 a MWh until Saturday.

South Australia’s controversial diesel generators – introduced by former Premier Jay Weatherill as a response to the state’s 2016 blackout – were also called on for the first time. Power was initially sent to supply-short Victoria, as the grid struggled to cope following the loss of over 1500 megawatts of baseload coal and gas generation from some of the nation’s largest suppliers this week.

The state’s Whyalla steelworks owned by billionaire Sanjeev Gupta also cut its consumption today to help support the system, a spokeswoman confirmed.

In South Australia – which typically relies on renewables for half its power needs – wind supplied less than 4 per cent of the state’s electricity today. Gas generators did the heavy lifting accounting for 82 per cent of generation with diesel also chipping in part of the balance.

Victoria was in a similar position with wind supplying 3.8 per cent of the state’s requirements as brown coal, gas and hydro were deployed to meet rising demand.

The decision to invoke load shedding marked an abrupt turnaround after Ms Zibelman had earlier said she expected there were sufficient reserves to get through the peak period.

“At this point we’re in a position where we anticipate we have enough resources to get us through the peak,” Ms Zibelman said this afternoon.

However, AEMO was forced into the measure several hours later as a result of a shortfall of available generation reserves.

Resources Minister Matt Canavan said more needed to be done to ensure reliable power.

“The circumstances of the last fortnight have underlined the need for investment in new, reliable power sources,” Mr Canavan told The Australian. “We have an ageing thermal power fleet in South Australia at the same time as very tight market conditions across the grid.”

Ms Zibelman said AEMO did not anticipate blackouts tomorrow, with a cool change expected to cross South Australia, reaching Melbourne about 3pm.

“We’re not expecting blackouts and we’re not yet expecting to call on reserves. We’ll re-evaluate that again in the morning,” Ms Zibelman said.

Earlier on Thursday the grid suffered a fresh setback after the failure of a unit at AGL’s Liddell coal-fired power plant in NSW, marking the fourth major generator unable to supply full capacity to electricity users.

The lost output from three ageing coal plants and a major gas generator during one of the tightest supply-demand periods of the summer underlines the fragility of the grid despite vast volumes of renewables boosting output over the last few years.

In addition to Liddell’s outage, a 560 megawatt unit from AGL’s Loy Yang A coal station in the Latrobe Valley was knocked out of action on Tuesday due to a tube leak with repairs likely to take about three days.

At Victoria’s nearby Yallourn coal-fired power station a 370 megawatt unit was also out of action due to regular maintenance cutting a quarter of the facility’s 1480 megawatt load. Owner EnergyAustralia said the works on the facility could not wait and it expects the unit back up and running next week.

The energy operator’s 435 megawatt Tallawarra gas-fired unit in NSW also dropped out of service on January 17 due to a rupture in a cooling pipe and the company has yet to outline when it will resume operations.
The Australian

So much for the hysteria, now to the propaganda. From the headline onwards, The Australian’s guileless reporters merrily trot out the line about “ageing coal plants” failing when they were needed most, blah, blah, blah.

As we noted yesterday, there is a total of 23,360 MW of coal-fired plant connected to the Eastern Grid (which excludes WA and the NT), comprising 10,240 MW in NSW, 8,390 MW in Queensland and 4,730 MW in Victoria.

So, the 930 MW of coal-fired power that was lost at Liddell and Yallourn due to mechanical faults (all capable of prompt remedy) represented a piddling 3.9% reduction in the availability of coal-fired power on the Eastern Grid.

Whereas, as the chaos struck Adelaide and its surrounding suburbs, the collapse in SA’s wind power output represented a failure to deliver 96.1% of SA’s wind power capacity.

SA, Australia’s wind power capital, has a notional wind power capacity of 1,929 MW.

Just before dawn, SA’s wind fleet was pushing out just on 1,360 MW. However, as temperatures rose and with it demand for electricity used to power air conditioners and the like, wind power output collapsed to a mere 76 MW, or 3.9% of notional capacity.

At least there was a passing reference to the fact that wind power’s contribution to demand was 4% – albeit without a trace of criticism, mind you. [Note to Ed: did they mean 4% of notional capacity, because with demand at 3,000 MW, 76 MW equals 2.5% of SA’s peak demand that day?]

For some strange reason, there was nothing in the article above about the colossal 1,284 MW drop in wind power output over the space of a few hours, and at a time when South Australian households and businesses needed electricity most. But to focus on that kind of failure is unhelpful to the narrative, which tells us that we’re well on our way to an all wind and sun powered future.

Oh, and by the way, for the uninitiated the sun drops over the horizon every day; in Adelaide it set around 8:27 PM last Thursday, and solar power output drops to a trickle a couple of hours before that. So, not only was wind power contributing nothing, hundreds of thousands of subsidised solar panels were just as useless.

Part of the hysterical language used was that SA’s electricity infrastructure “buckled”. What occurred, in fact, was that a number of transformers were at risk of overheating and were shut down, and a very large unit within a substation at Fulham Gardens overheated and failed.

One real possibility for the problems with transformers and other grid infrastructure involves the wild variability in voltage and frequency that accompanies the erratic delivery of wind and solar.

A few weeks back, STT reported on the fact that grid managers are now routinely interfering in the volume of solar power coming from rooftop solar panels: Why Your Neighbour’s Solar Panels Are Cooking Your Computer & Blowing Your Lightglobes, Etc

Voltage surges (on occasions as high as 270 volts – the standard in Australia is 240) from uncontrolled domestic solar is already responsible for damage to appliances and grid infrastructure, and the risk of further damage has led to wholesale intervention on occasions, where the grid manager is literally chopping households from the grid to prevent them overloading it with excessive voltage.

Then there’s the astronomical cost that results from that same chaos. The couple of hot days experienced on Thursday and Friday last week, saw demand increase in both South Australia and Victoria.

In SA, having blown up its last coal-fired power plant last year, to meet the demand for 3,000 MW, the grid operator was forced to pay an extortionate $14,500 per MWh in an attempt to keep the system from collapsing. That figure represents the regulated market cap, it also represents a substantial margin above the $35 per MWh that SA’s last coal-fired power plant could reliably deliver power 24/7, whatever the weather.

Instead, the state was heavily reliant upon fast-start up Open Cycle Gas Turbines, diesel generators and 276 MW of OCGTs purchased by Jay Weatherill, which run on diesel, consuming 80,000 litres an hour. All of which are insanely expensive to run and allow their owners to routinely game the system around wind and solar collapses: Generators Game Power Market Around Wind & Solar Output Collapses: Spot Prices Routinely Hitting $14,000/MWh

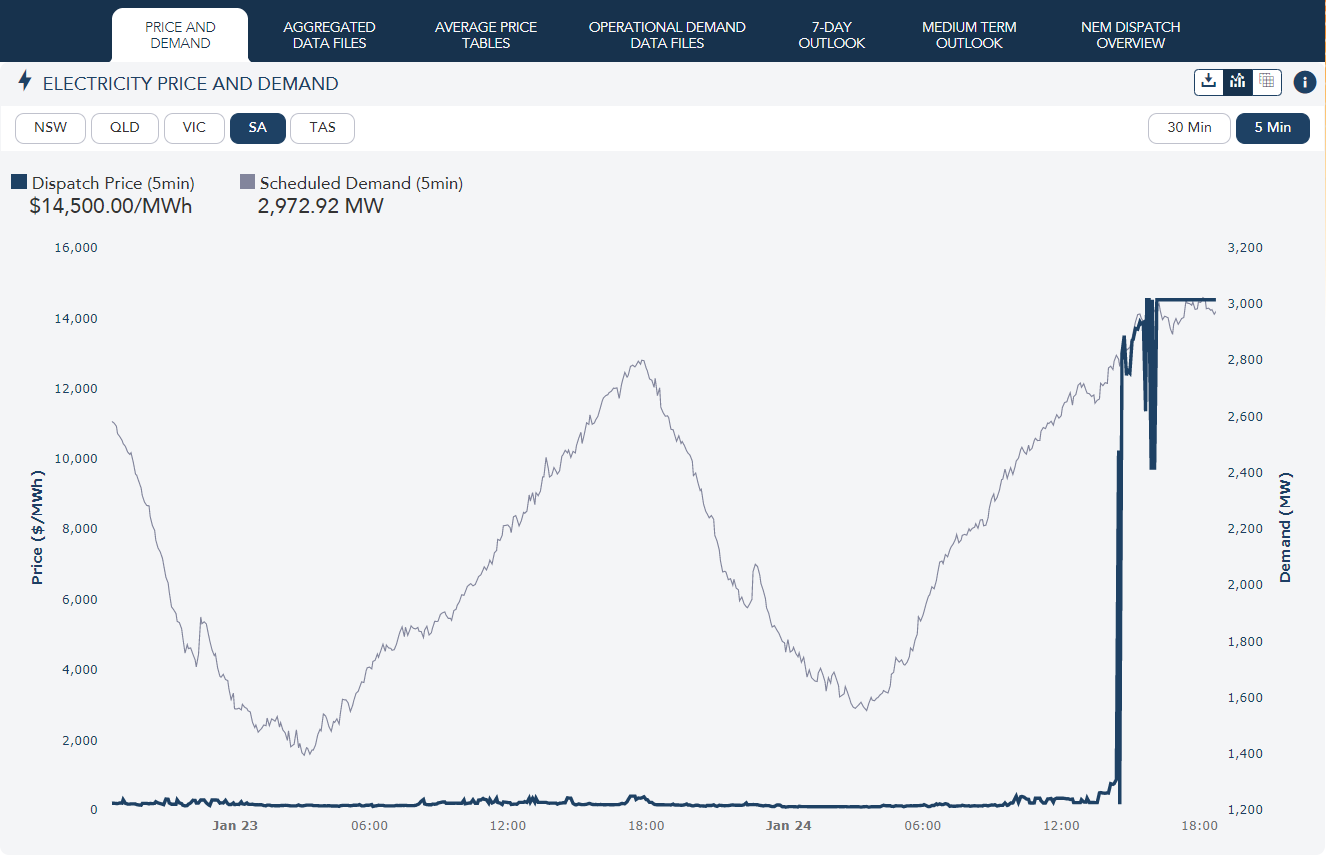

The graphic above depicts the five-minute spot price as the heavy blue line that prevailed on 24 January in SA, the graphic below covers the 30 min spot market in SA over the next 24 hours or so.

After SA destroyed its last coal-fired power plants, it became even more dependent on coal-fired power from Victoria. When Victoria closed its Hazelwood plant in 2016, it lost 1,600 MW of reliable power, too.

Now, both of these RE ‘superpowers’ struggle to find enough electricity to keep the lights on when the weather warms up, and wind power output plummets. Here’s what happened to the spot price in Victoria on 24 and 25 January 2019.

On 25 January, as we reported yesterday, Victoria’s wind power output collapsed to around 20% of its nameplate capacity and 200,000 powerless householders were left sweltering, not to mention dozens of energy hungry businesses that were unceremoniously chopped from the grid, too. Despite bold assurances from Victoria’s Energy Minister, Lily D’Ambrosio that there would be “no blackouts in Victoria” on Friday.

The spot price in both states was running north of $10,000 per MWh for lengthy periods on 24 and 25 January, naturally enough the average wholesale price hit the roof. As a result, South Australians and Victorians should brace themselves for more double-digit increases in their retail power bills this year. South Australians got whacked with a 22% increase, last year.

With all the hysterical criticism being directed at coal-fired power, RE zealots might note a slight difference between the prices prevailing in coal-fired Queensland and NSW: $100 per MWh compares rather favourably to the $14,000 plus per MWh South Australians and Victorians were being slugged, because either the sun set and/or the wind stopped blowing.

Welcome to your wind powered future!
